E 14747 D - Spray Dryer GEA SDMicro

E 14747 D - Spray Dryer GEA SDMicro

Description

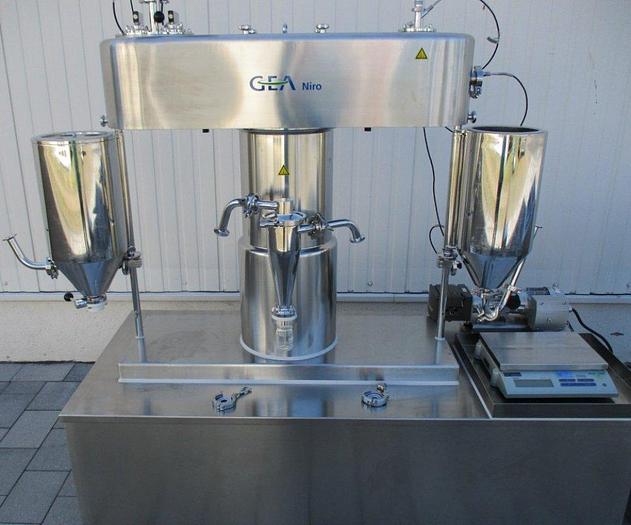

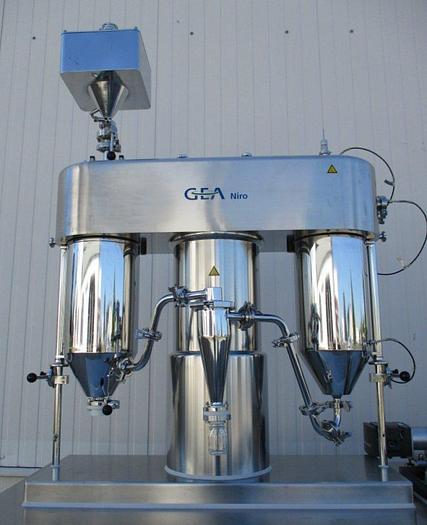

  •  Mobile laboratory unit is suitable for spray drying water or solvent-based pharmaceutical solutions, suspensions or emulsions such as proteins and vitamins.
  •  Small-scale tests and small powder quantities for product and concept studies possible
  •  Process gas: Nitrogen
  •  Nitrogen is heated using an electric heater to dry the liquid components in the mixture under aseptic conditions.
  •  In the upper part of the spray dryer tower, the material to be dried is introduced into the arranged two-substance spray nozzles in the hot gas flow, atomized and dried to a fine powder in a very short time.
  •  Dried particles leave the tower through an outlet pipe and are recovered in a cyclone and discharged into a glass container (100 ml volume), the finest particles in the process gas are passed through a bag filter and collected there.

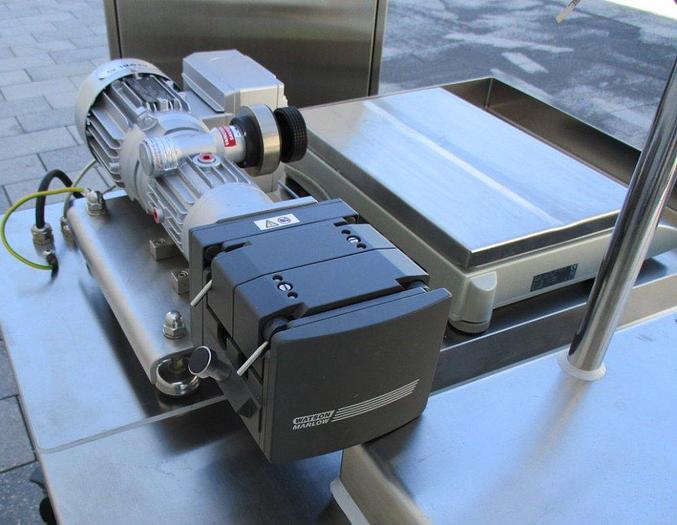

  •  Watson Marlow peristaltic pump available

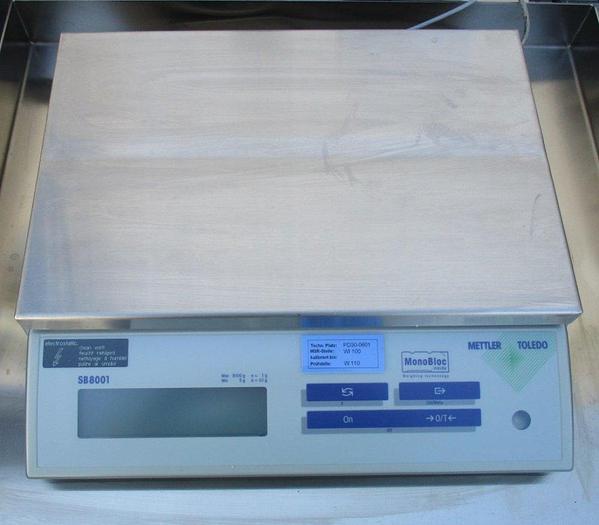

  •  Mettler Toledo SB 8001 balance available
  •  Max. process quantity of nitrogen: 60 kg / hour
  •  Water evaporation at max. 1 kg / hour


Specifications

ManufacturerGEA Courtoy
ConditionUsed
