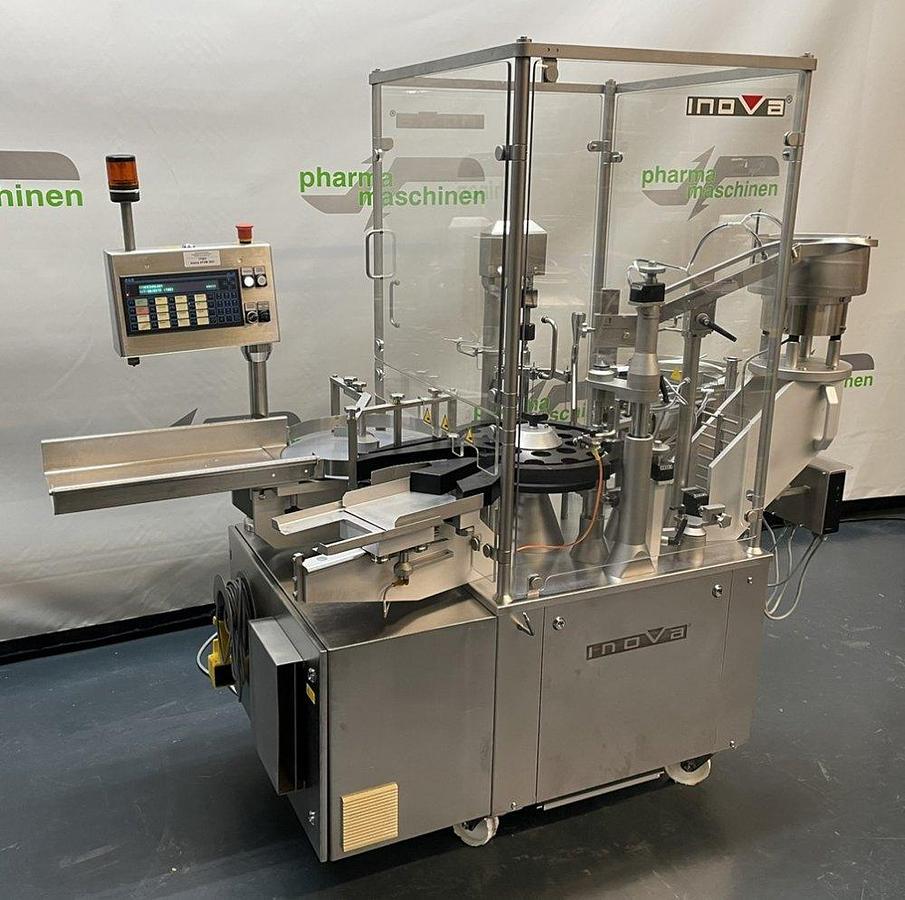

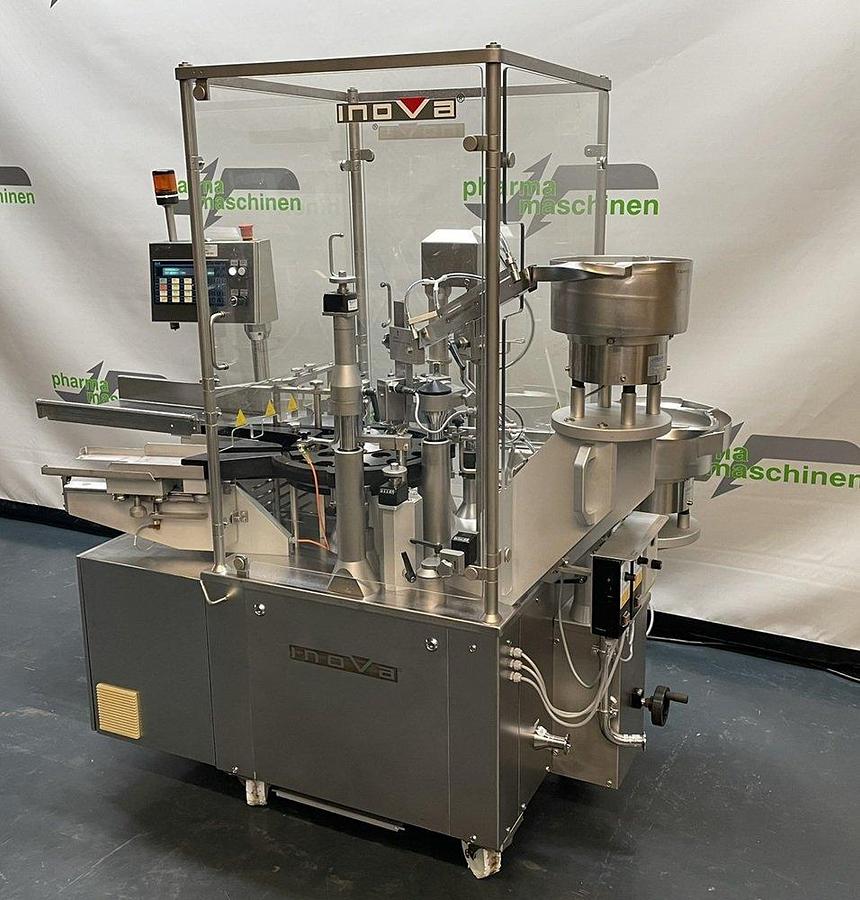

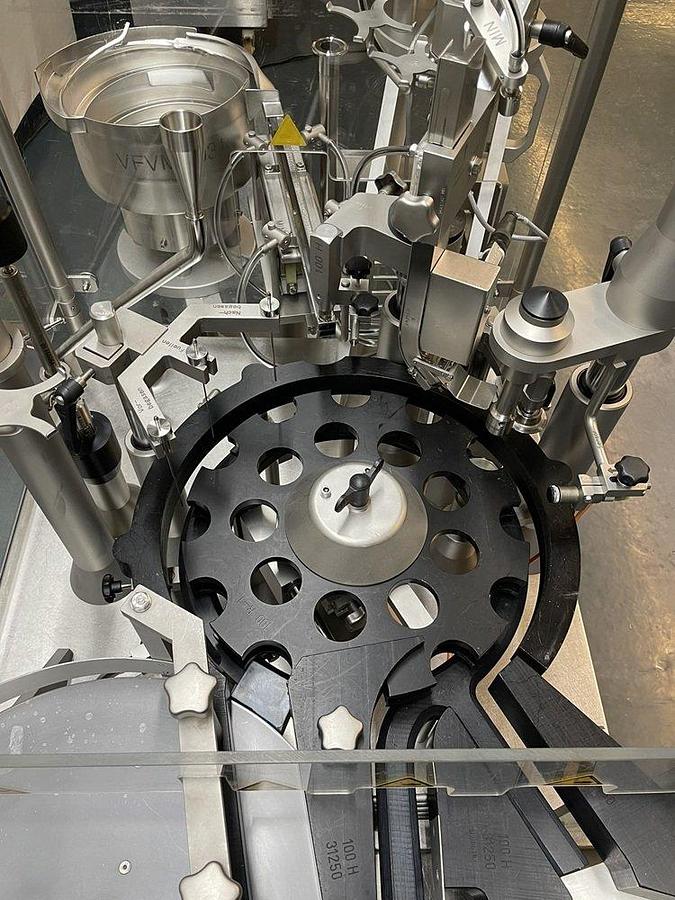

J 17083 D - Liquid Filler - Stopper Inserter - Cap Spinner INOVA VFVM 3031

This machine is designed to fill and insert stoppers into solid objects and to spin aluminium caps. The manufacturer states a maximum output of 4,200 objects per hour, depending on product and fill volume. The design parameters are as follows:

•  fill volume: 0,2 - 150 ml
•  Object Ø: 15 - 53 mm
•  Object-Hight: 30 - 140 mm
•  Plug diameter: max. 31 mm

Including formats for

•  Vials  16, 20, 22, 28, 38, 46 und 50 mm (2R - 10R - 20R - 30R - 50R - 100R - 100H)
•  Sorting pots for stoppers and aluminium caps Ø 13 mm and Ø 20 mm
