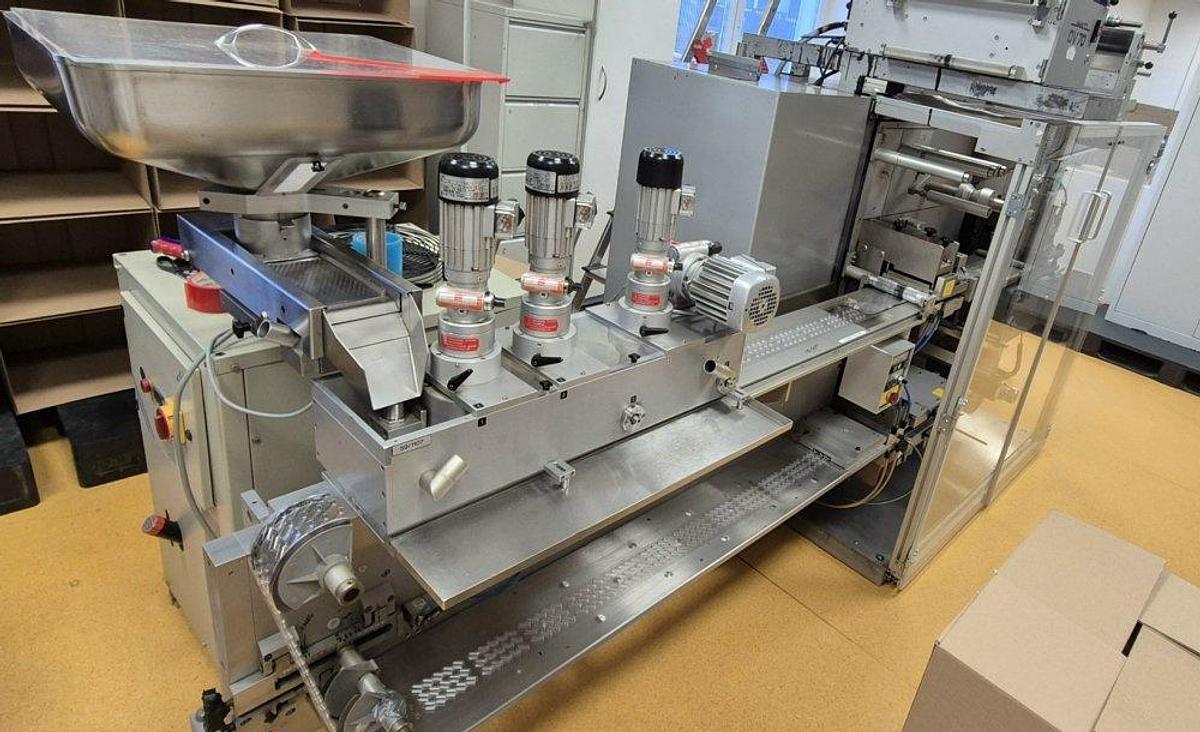

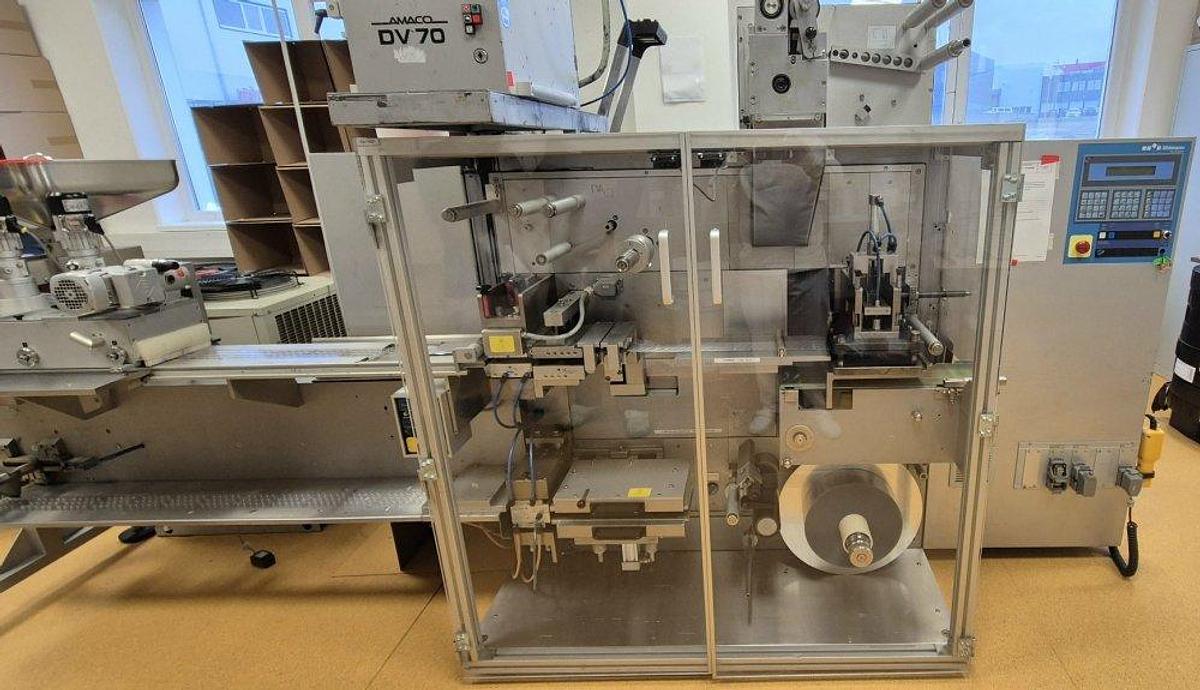

I 16665 D Blisterpacker UHLMANN UPS 300

This is an intermittently operating Blisterpacking machine, suitable for producing and filling of blisters with tablets, capsules and dragees at speeds of up to 50 strokes per minute.

Technical specifications:

•  50 strokes/min. with 10,0 mm draw-depth
•  35 strokes/min. with 18,5 mm draw-depth
•  Max. cutting width: 156 mm
•  Max. forward draw: 110 mm
•  Max. foil width: 168 mm
•  Max. roll dia. deep-draw foil: 400 mm
•  Max. roll dia. aluminium-foil: 240 mm
•  Core diameter: 70 - 76 mm
•  Power consumed: 5,0 kW (approx.)
•  Total power connected: 8,0 kW

This machine is fitted an automatic product feeder.
