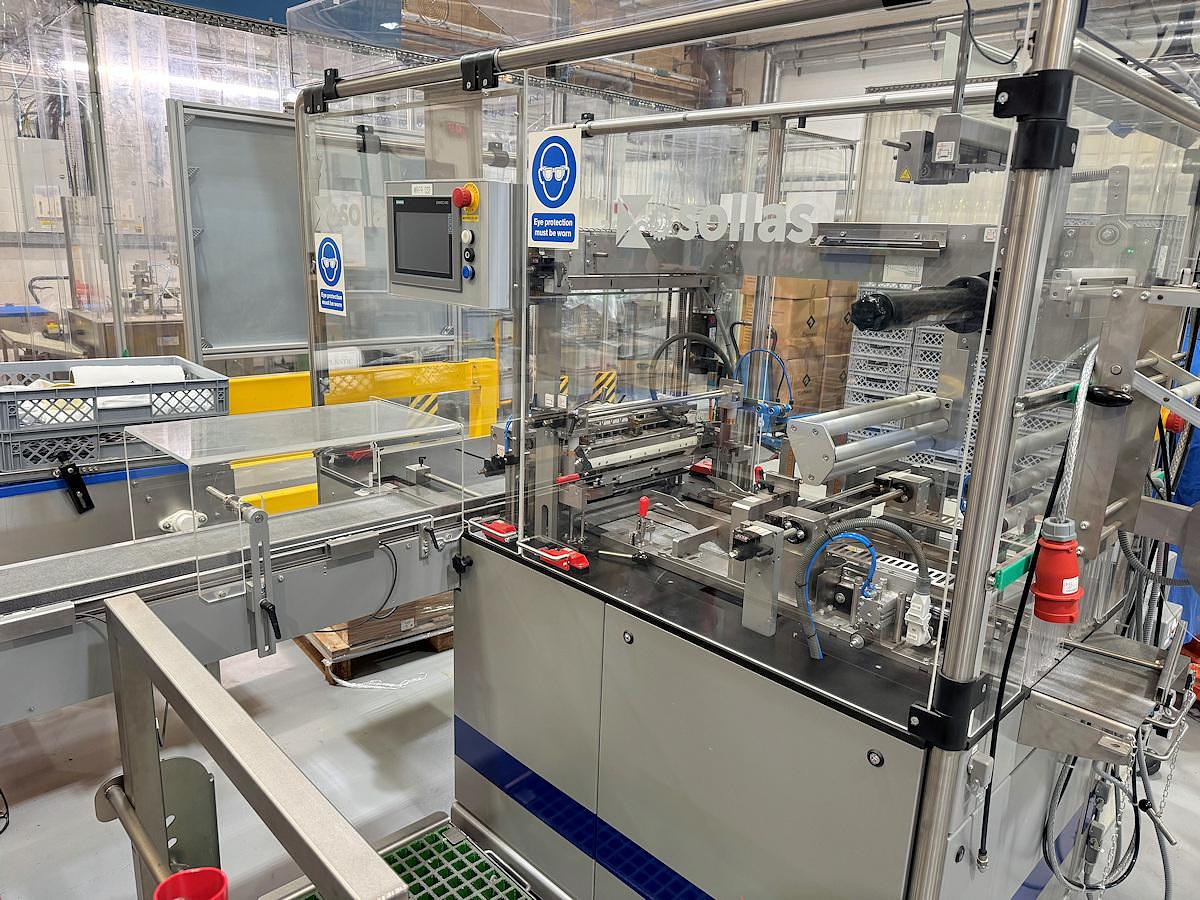

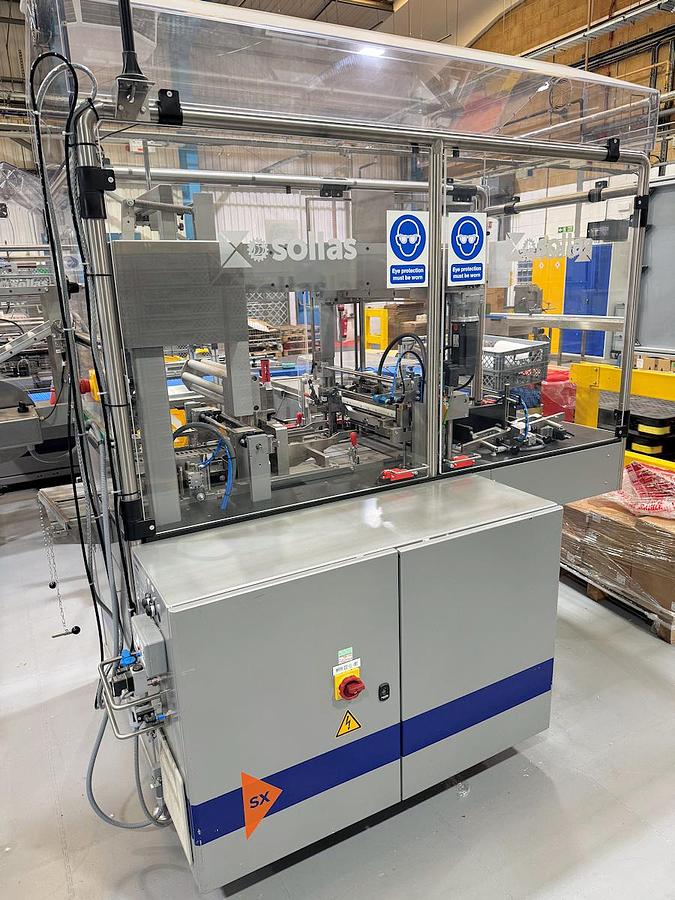

O 13001 E - Overwrapper SOLLAS SX80 with Carton Collator

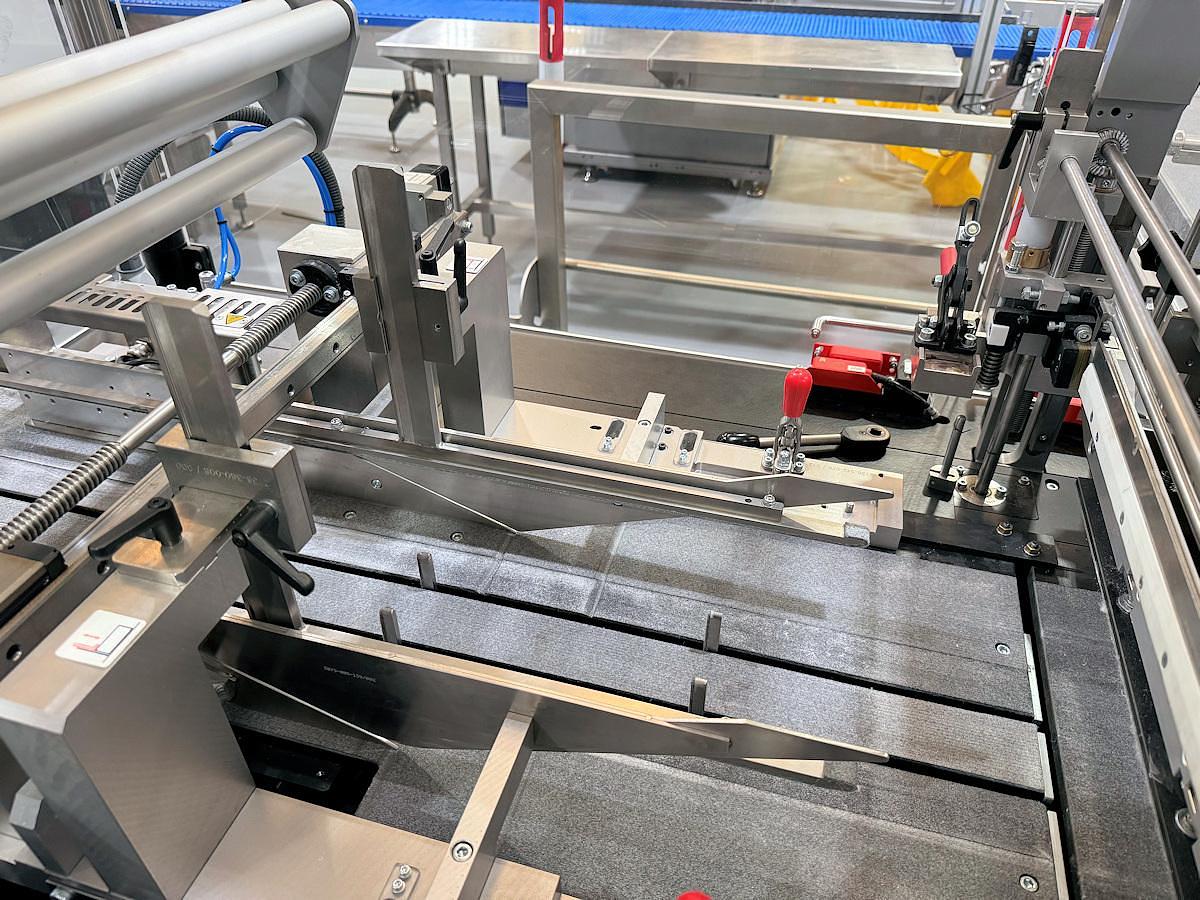

This automatic overwrapping machine is equipped with a side-entry conveyor with collation unit allowing single packs or multi-layer collations to be processed. The capacity of the machine depends on the product, infeed system and wrapping material used. The manufacturer states up to 80 strokes per minute. The machine is designed to handle single packs or collations within the following size ranges: - Length: Min. 40 mm to Max. 300 mm Width: Min. 40 mm to Max. 175 mm Height: Min. 16 mm to Max. 66 mm

It can wrap using PP or coated paper of 20 microns thickness and upwards

Max. Reel diameter: 400 mm

Max. Reel width: 435 mm

Min. Reel width: 50 mm

Film cut-off length: Min. 50 mm to Max. 750 mm

Technical details and further information can be supplied or request. The line is offered Ex Users Factory where it is still installed, inspection visits can be arranged by appointment.
