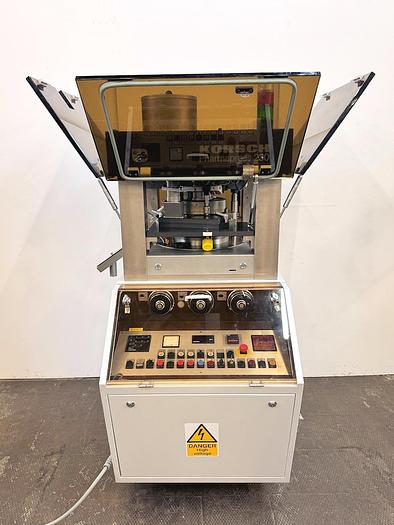

F 16491 E - Tablet Press KORSCH PH 230/14 - 14 Stations EU-D
F 16491 E - Tablet Press KORSCH PH 230/14 - 14 Stations EU-D
Description
This high-performance, compact, rotary tablet press is suitable for manufacturing round tablets up to 25 mm diameter with a maximum tablet thickness of 11 mm The machine is designed to accept EU-D / D type tooling and has a capacity between 21,000 and 75,600 tablets per hour.
The machine has keyed punch guides allowing the production of caplet / oval or similar shaped tablets if required.
Specifications
| Manufacturer | Korsch, Berlin / Germany |
| Model | KORSCH PH 230 |
| Condition | Used |
| Stock Number | F 16491 |
| Compression force | max. 60 kN (6 Tons) |
| Pre-compression | max. 15 kN (1.5 Tons) |
| Tablet diameter | max. 25 mm |
| Depth of fill | max. 22 mm |
| Punch shaft diameter | 25.35 mm |
| Die diameter | 38.1 mm |
