C 15503 E - Cone Mill QUADRO 196 S Comil - ATEX

C 15503 E - Cone Mill QUADRO 196 S Comil - ATEX

Description

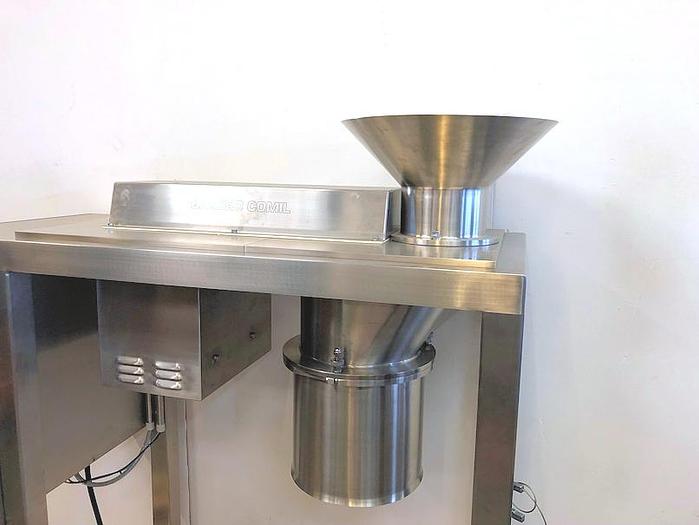

This is a totally enclosed conical mill with ‘gentle’ grinding operation. It is suitable for full scale production with a capacity of 450 - 6,800 kg/hour.


The mill is constructed from high grade 316 stainless steel, it is driven from a 7.5 kW motor arranged for variable speed between 150 - 1,500 rpm and is supported on a stainless steel mobile stand with lockable wheels.

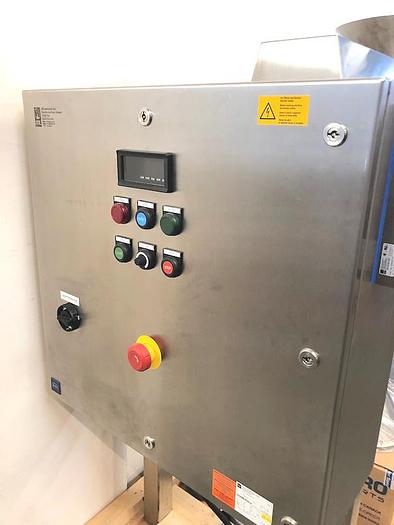

The electrical installation is ATEX EX II 3D c internal / 3D external rated and mounted in a console at the end of the machine. This panel includes operator controls for Start / Stop and rotor speed adjustment; it also includes a speed indicator.

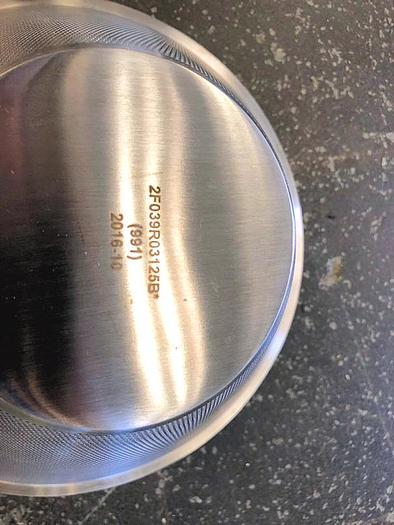

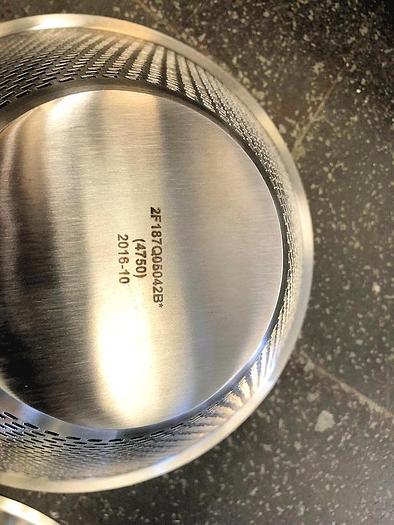

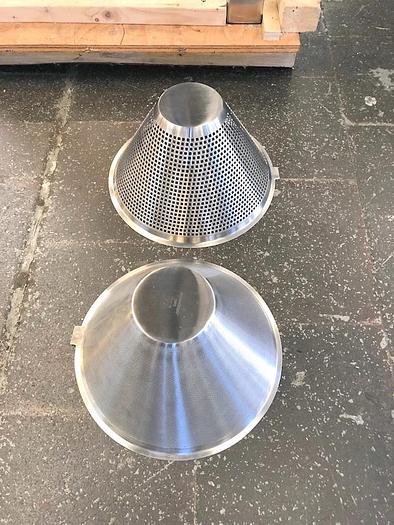

The machine is offered with 2 screens and is in completely new condition - it was never installed after delivery.

Specifications

ManufacturerQuadro, Canada
Model196 S
ConditionNew
Stock NumberC 15503 E
